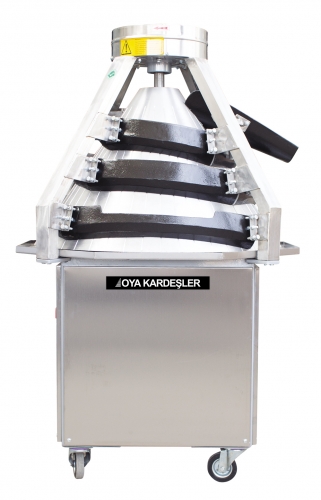

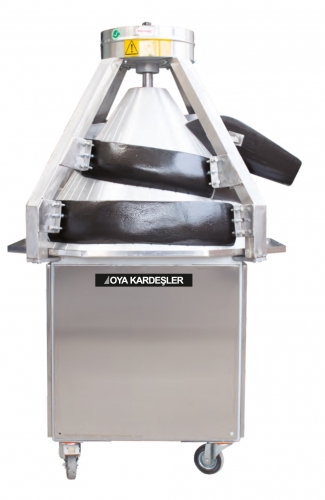

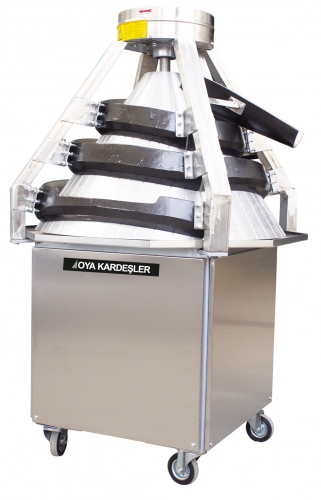

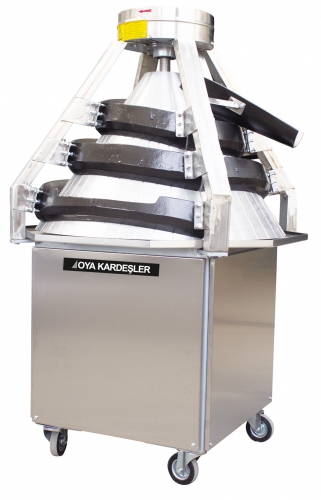

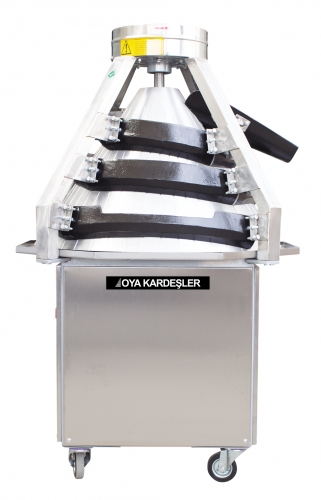

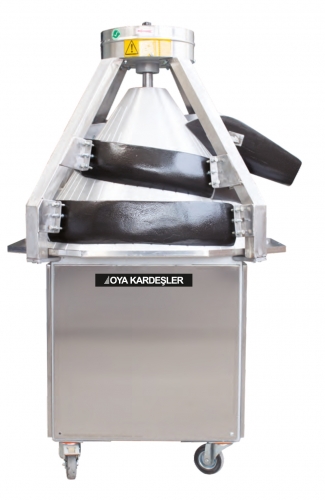

CONICAL ROUNDING MACHINE OCM3001-3000
Conical rounder machine shapes the dough thanks to a cone made of aluminium and the aluminium sleeves around which spirally move.
The dough coming from volumetric dough divider drops into the aluminium input chute. It reaches to the proofing machine being shaped thanks to rounding chamber and leading chutes.
At the meantime,the dough is prevented to stick to the discharge chute thanks to the flour system. Thanks to the
All the aliminium components can be coated with teflon as per the request. 3 types of machinery to shape 50-200 gr,100-600 gr and 200-1200 gr. dough is manufactured.
Technical Specification
Model Unit OCM3001-3000 Capacity pcs / h 160 – 2000 Dough rounding range g ( 50-200 ) (100-600) ( 200-1200) Height of dough entrance (H1) mm 930 Height of dough exit (H2) mm 930 Width (W) mm 920 Length (L) mm 920 Height (H) mm 1430 Electrical power Kw 1,1 Weight of machine kg 220
Manufacturer reserves the right to change specifications without prior notice.
